X30
- Premium Intelligent Brushless Platform
- Designed for premium brands and smart kitchen projects, with intelligent water inlet, automatic reverse, coordinated drainage and integrated protection.
- Intelligent Water Inlet Coordinates water flow with the operating process.
- Automatic Reverse & Stop Helps reduce jams and unnecessary operation.
- Fault Code Display Makes fault identification and service follow-up clearer.
- Multi-Protection System Supports safer operation under abnormal load or temperature conditions.

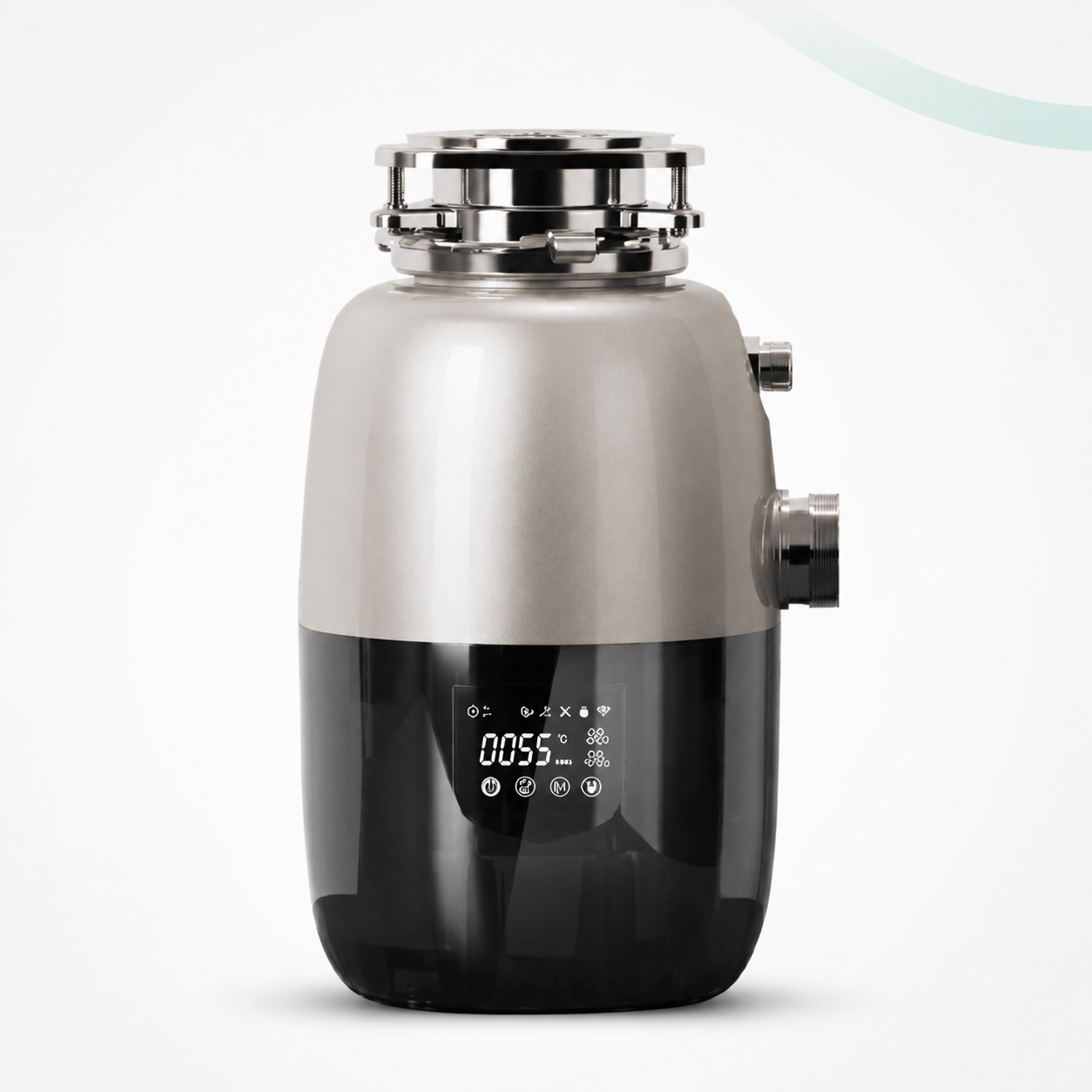

X30 Smart Food Waste Disposer
Powerful Performance with Intelligent Control
The X30 is a flagship smart food waste disposer powered by a brushless DC variable-frequency motor. It combines CF Boost Grinding, intelligent boosted drainage and automated operation to provide efficient and convenient food waste disposal for modern kitchens.
With automatic water inlet, automatic reverse, intelligent auto stop, a digital status display, child-lock functionality and built-in safety protection, the X30 delivers a more automated and user-friendly experience for residential kitchens, premium projects and customized OEM/ODM applications.

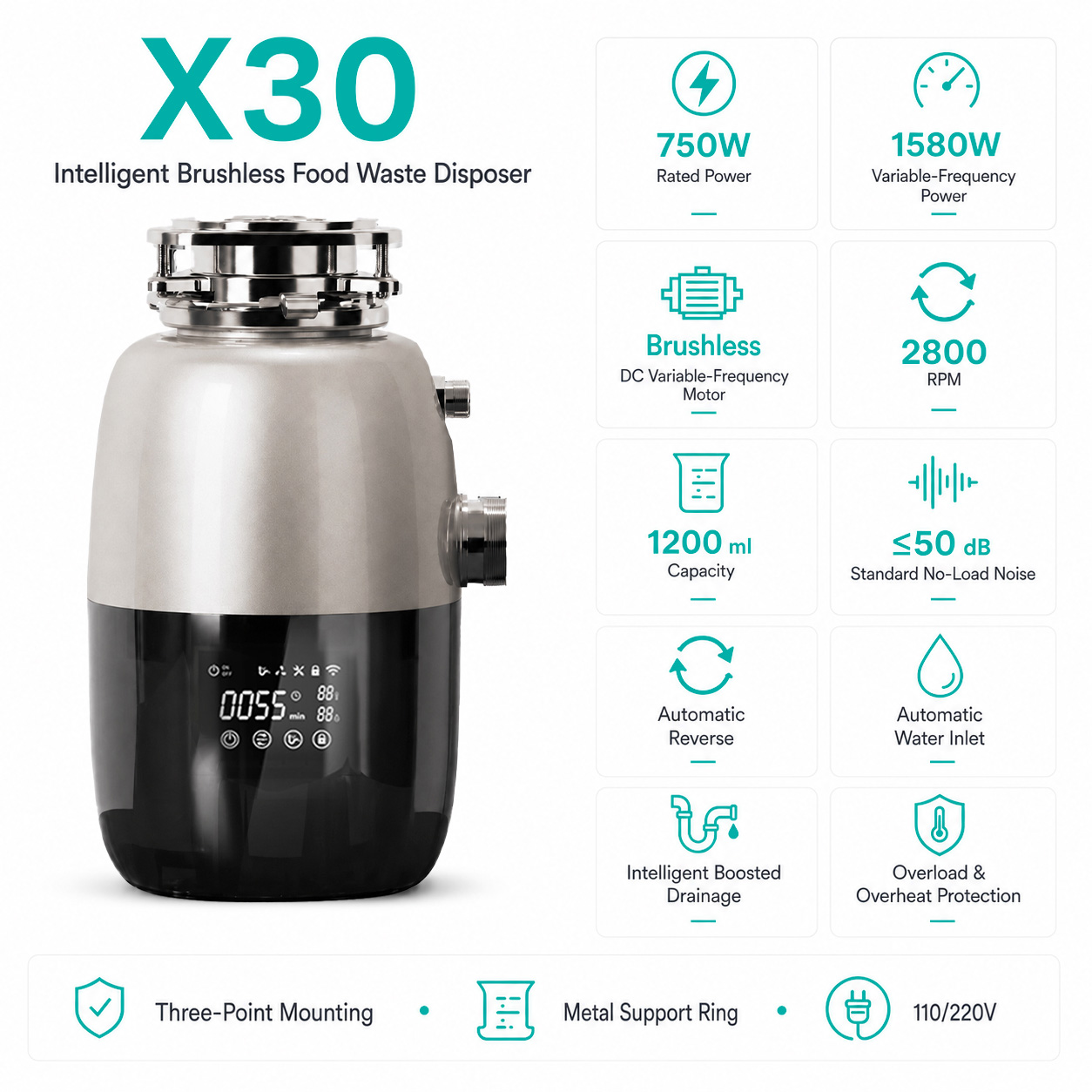

Technical Specifications
| Specification | X30-1HP |
|---|---|
| Product Color | Champagne + Black Dual-Tone |
| Power Range | 750–1580 W |
| Variable-Frequency Power | 1,580 W |
| Motor Type | Brushless DC Variable-Frequency Motor |
| Rated Voltage | 110 V / 220 V |
| Rated Frequency | 50 Hz |
| Motor Speed | 2,800 rpm |
| New Standard Tested Capacity | 1,200 ml |
| Capacity Including Sink Outlet | 1,400 ml |
| Grinding System | CF Boost Grinding System |
| Double-Layer Grinding Disc | No |
| Control Method | Remote-Control Switch |
| Installation System | Three-Point Mounting |
| Mounting Support | Metal |
| Automatic Reverse | Yes |
| Automatic Water Inlet | Yes |
| Intelligent Boosted Drainage | Yes |
| Intelligent Auto Stop | Yes |
| Digital Display | Yes |
| Child Lock | Yes |
| Safety Protection | Overload and Overheat Protection |
| Standard No-Load Noise | ≤50 dB |
| Housing Material | ABS |
| Product Dimensions | 355 × 198 mm |
| Mounting Interface | 90 mm inner diameter / 110 mm outer diameter |
| Optional Outer Diameter | 114 mm |
| Net Weight | Approx. 7.9 kg |
| Gross Weight | Approx. 9.3 kg |
Safety and Reliability
The X30 combines overload and overheat protection with automatic reverse, intelligent drainage and automated control functions.
Its brushless variable-frequency platform is designed to provide stable everyday operation while reducing unnecessary manual intervention during the food waste disposal process.
Standards and Certification
Applicable Standards
GB/T 4706.49-2024
GB/T 22802-2024
Certification / Test Reports
FCC
CQC
CE
UL Test Report
Standard Accessories
The X30 comes with a complete standard accessory package for installation and everyday use.
Remote-Control Switch × 1
Double-Threaded Connection Pipe × 1
Double-Layer Stainless Steel Multifunctional Sink Stopper × 1
60 mm Adapter × 1
Water Inlet Hose × 1
Three-Way Elbow Pipe × 1
Splash Guard × 1
Accessory Box × 1
Instruction Manual × 1
Product Certificate × 1
Packaging Carton × 1
Packaging and Delivery
| Item | Details |
|---|---|
| Package Dimensions | 325 × 265 × 430 mm |
| Net Weight | Approx. 7.9 kg |
| Gross Weight | Approx. 9.3 kg |
| Estimated Production Lead Time | 7–15 Days |
Container Loading
| Container | Theoretical Loading Quantity |
|---|---|
| 20GP / 28 m³ | 756 units |
| 40GP / 50 m³ | 850 units |
| 20HQ / 31.5 m³ | 1,350 units |
| 40HQ / 65 m³ | 1,755 units |
The quantities above are theoretical maximum loading values. Actual loading quantities may vary depending on packing arrangement, loading clearance, container structure and pallet requirements.
OEM / ODM Support
The X30 can be adapted to different markets and project requirements.
Available customization options may include:
Product Color
Logo Branding
Packaging
Accessory Configuration
110 V / 220 V Voltage Configuration
Optional 114 mm Mounting Interface
Customized Drainage Accessories
OEM / ODM Cooperation
Voltage, product color, packaging and accessory configuration can be adapted according to different market and OEM/ODM requirements. Final product appearance and configuration are subject to confirmation between both parties.
