X10
- Efficient Brushless Water-Control Platform
- Designed for residential kitchen programs, combining brushless motor technology with automatic water inlet, automatic reverse and coordinated drainage control.
- Brushless DC Variable-Speed Motor Supports stable operation under changing loads without carbon-brush wear.
- Automatic Water Inlet Coordinates water flow with the operating cycle, reducing separate faucet operation.
- Automatic Reverse Helps release resistance and reduce manual intervention.
- Intelligent Drainage Control Coordinates water flow and discharge to help move ground food waste through the drain.

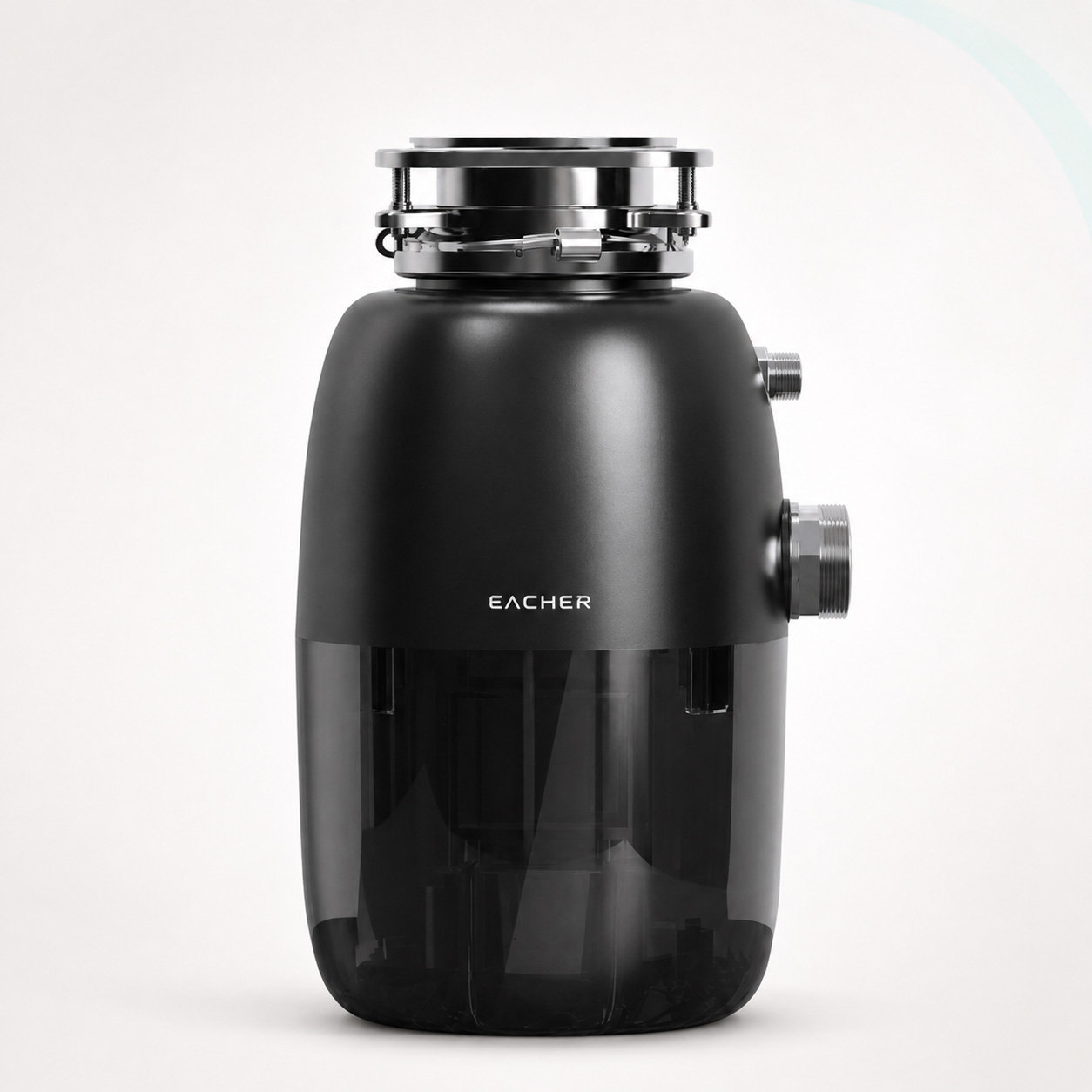

X10 Smart Food Waste Disposer
Reliable Brushless Performance in a Compact Design
The EACHER X10 is an entry-level smart food waste disposer powered by a brushless DC variable-frequency motor. It combines CF Boost Grinding, Automatic Reverse and Intelligent Boosted Drainage to provide efficient and convenient food waste disposal for modern residential kitchens.
With remote-control operation, a compact black ABS housing and built-in safety protection, the X10 offers a practical balance of brushless performance, quiet operation and installation flexibility for residential kitchens, distribution projects and customized OEM/ODM applications.

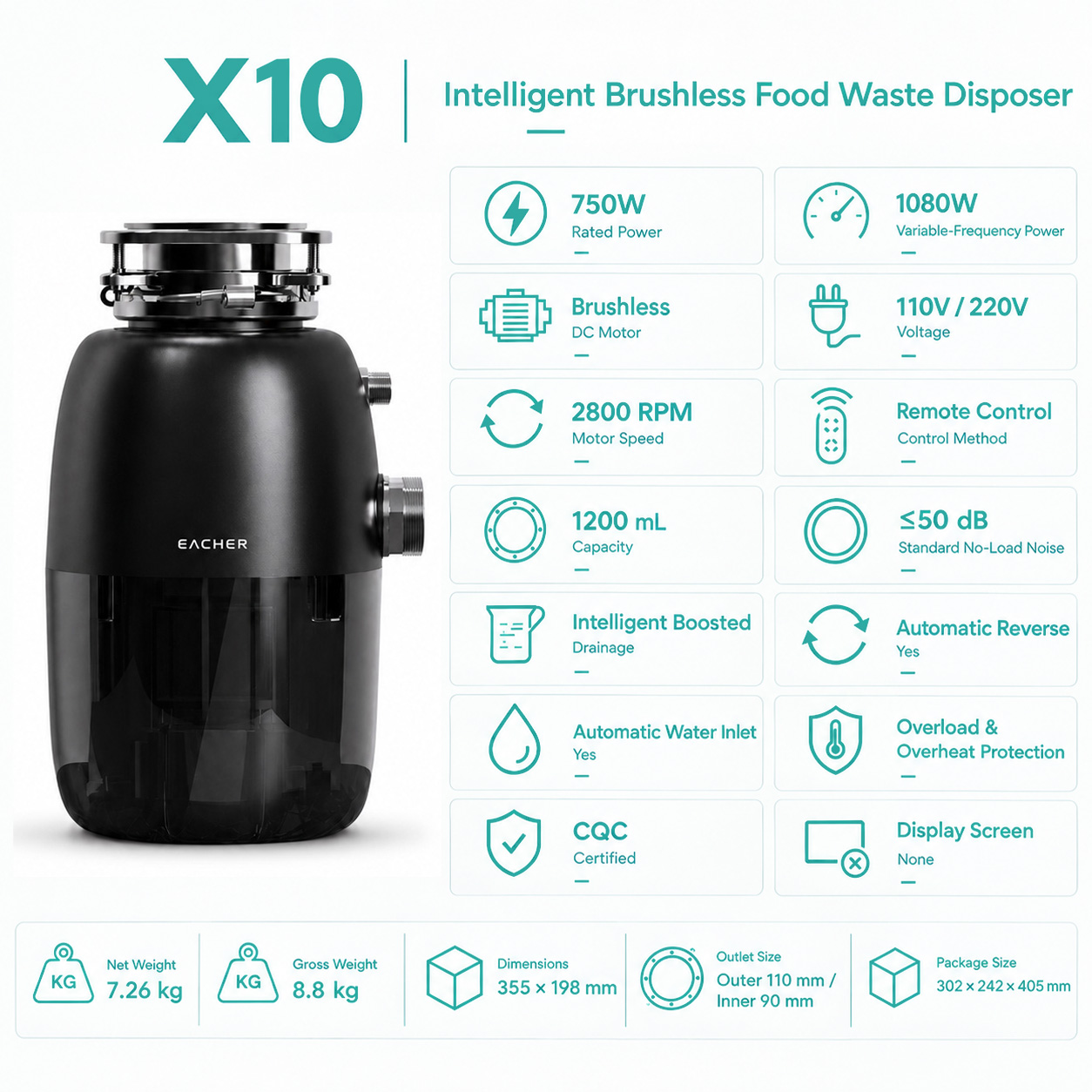

Technical Specifications
| Specification | X10-2HP |
|---|---|
| Product Positioning | Entry-Level Smart Brushless Model |
| Recommended Household Size | 3–5 People |
| Product Color | Black |
| Power Range | 750–1580 W |
| Variable-Frequency Power | 1580 W |
| Motor Type | Brushless DC Variable-Frequency Motor |
| Rated Voltage | 110 V / 220 V |
| Rated Frequency | 50 Hz |
| Motor Speed | 2,800 rpm |
| New Standard Tested Capacity | 1,200 ml |
| Capacity Including Sink Outlet | 1,400 ml |
| Standard No-Load Noise | ≤50 dB |
| Grinding System | CF Boost Grinding System |
| Double-Layer Grinding Disc | No |
| Control Method | Remote-Control Switch |
| Installation System | Three-Point Mounting |
| Mounting Support | Metal |
| Automatic Reverse | Yes |
| Automatic Water Inlet | No |
| Intelligent Boosted Drainage | Yes |
| Digital Display | No |
| Safety Protection | Overload and Overheat Protection |
| Housing Material | ABS |
| Product Dimensions | 355 × 198 mm |
| Mounting Interface Inner Diameter | 90 mm |
| Mounting Interface Outer Diameter | 110 mm |
| Optional Outer Diameter | 114 mm |
| Net Weight | Approx. 7.26 kg |
| Gross Weight | Approx. 8.8 kg |
Safety and Reliability
The X10 combines overload and overheat protection with automatic reverse and intelligent boosted drainage.
Its brushless variable-frequency control platform is designed to provide stable everyday operation while supporting smoother grinding and discharge.
Standards and Certification
Applicable Standards
GB/T 4706.49-2024
GB/T 22802-2024
Certification / Test Reports
FCC
CQC
CE
UL Test Report
Standard Accessories
The X10 comes with a complete standard accessory package for installation and everyday use.
Remote-Control Switch × 1
Double-Threaded Connection Pipe × 1
Double-Layer Stainless Steel Multifunctional Sink Stopper × 1
60 mm Adapter × 1
Three-Way Elbow Pipe × 1
Splash Guard × 1
Accessory Box × 1
Instruction Manual × 1
Product Certificate × 1
Packaging Carton × 1
Water inlet hose is not included as standard.
Packaging Information
| Item | Details |
|---|---|
| Package Dimensions | 325 × 265 × 430 mm |
| Net Weight | Approx. 7.26 kg |
| Gross Weight | Approx. 8.8 kg |
| Estimated Production Lead Time | 7–15 Days |
Container Loading
| Container | Theoretical Loading Quantity |
|---|---|
| 20GP / 28 m³ | 756 units |
| 40GP / 50 m³ | 850 units |
| 20HQ / 31.5 m³ | 1,350 units |
| 40HQ / 65 m³ | 1,755 units |
The quantities above are theoretical maximum loading values. Actual loading quantities may vary depending on packing arrangement, loading clearance, container structure and pallet requirements.
OEM / ODM Support
The X10 can be adapted to different market and project requirements.
Available customization options may include:
Product Color
Logo Branding
Packaging
Accessory Configuration
110 V / 220 V Voltage Configuration
Optional 114 mm Mounting Interface
Customized Drainage Accessories
OEM / ODM Cooperation
Voltage, product color, packaging and accessory configuration can be adapted according to different market and OEM/ODM requirements. Final product appearance and configuration are subject to confirmation between both parties.
