X20
- Smart Water-Control Brushless Platform
- Designed for mid-to-high-end brands and kitchen projects, with a brushless motor, automatic water inlet, automatic reverse and intelligent drainage control.
- Brushless DC Variable-Speed Motor Supports stable operation under changing loads without carbon-brush wear.
- Automatic Water Inlet Coordinates water flow with the operating cycle, reducing separate faucet operation.
- Automatic Reverse Helps release resistance and reduce manual intervention.
- Intelligent Drainage Control Coordinates water flow and discharge to help move ground food waste through the drain.

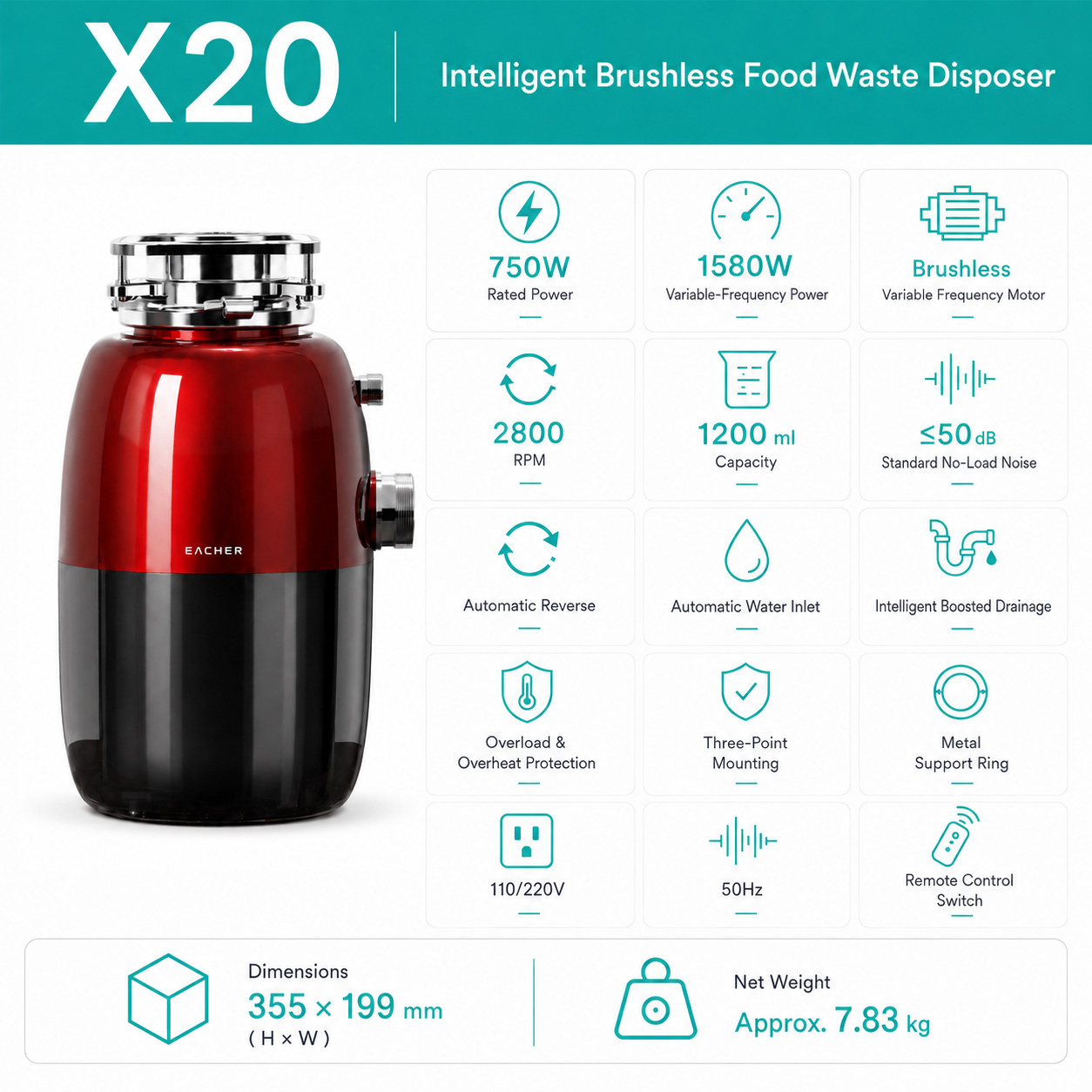

X20 Smart Food Waste Disposer
Powerful Brushless Performance for Everyday Kitchens
The EACHER X20 is a fully automatic smart food waste disposer designed for modern residential kitchens.
Powered by a brushless DC variable-frequency motor, the X20 combines CF Boost Grinding, Automatic Water Inlet, Automatic Reverse and Intelligent Boosted Drainage to deliver efficient and convenient everyday food waste disposal.
With a compact dual-tone body, remote-control operation and built-in safety protection, the X20 is also well suited for residential projects, distributors and customized OEM/ODM applications.
Technical Specifications
| Specification | X20-2HP |
|---|---|
| Product Positioning | Fully Automatic Smart Model |
| Recommended Household Size | 3–5 People |
| Product Color | Red + Black Dual-Tone |
| Power Range | 750–1580 W |
| Variable-Frequency Power | 1580 W |
| Motor Type | Brushless DC Variable-Frequency Motor |
| Voltage | 110 V / 220 V |
| Frequency | 50 Hz |
| Motor Speed | 2800 rpm |
| New Standard Tested Capacity | 1200 ml |
| Capacity Including Sink Outlet | 1400 ml |
| Standard No-Load Noise | ≤50 dB |
| Grinding System | CF Boost Grinding System |
| Double-Layer Grinding Disc | No |
| Control Method | Remote-Control Switch |
| Installation System | Three-Point Mounting |
| Mounting Support | Metal |
| Automatic Reverse | Yes |
| Automatic Water Inlet | Yes |
| Intelligent Boosted Drainage | Yes |
| Digital Display | No |
| Safety Protection | Overload & Overheat Protection |
| Housing Material | Semi-Transparent ABS |
| Product Dimensions | 355 × 199 mm |
| Mounting Interface Inner Diameter | 90 mm |
| Mounting Interface Outer Diameter | 110 mm |
| Optional Outer Diameter | 114 mm |
| Net Weight | Approx. 7.83 kg |
| Gross Weight | Approx. 9.2 kg |
Safety & Reliability
The X20 integrates overload and overheat protection together with automatic reverse and intelligent drainage functions.
Its brushless variable-frequency control platform is designed to provide stable daily operation while reducing unnecessary manual intervention during the disposal process.
Standards & Certification
Applicable Standards
GB/T 4706.49-2024
GB/T 22802-2024
Certification / Test Reports
FCC
CQC
CE
UL Test Report
Standard Accessories
The X20 comes with a complete standard accessory package for installation and everyday use.
Remote-Control Switch × 1
Double-Threaded Connection Pipe × 1
Double-Layer Stainless Steel Multifunctional Sink Stopper × 1
60 mm Adapter × 1
Water Inlet Hose × 1
Three-Way Elbow Pipe × 1
Splash Guard × 1
Accessory Box × 1
Instruction Manual × 1
Product Certificate × 1
Packaging Carton × 1
Packaging Information
| Item | Details |
|---|---|
| Package Dimensions | 325 × 265 × 430 mm |
| Net Weight | Approx. 7.83 kg |
| Gross Weight | Approx. 9.2 kg |
| Estimated Production Lead Time | 7–15 Days |
Container Loading
| Container | Theoretical Loading Quantity |
|---|---|
| 20GP / 28 m³ | 756 units |
| 40GP / 50 m³ | 850 units |
| 20HQ / 31.5 m³ | 1,350 units |
| 40HQ / 65 m³ | 1,755 units |
The quantities above are theoretical maximum loading values. Actual loading quantities may vary depending on packing arrangement, loading clearance, container structure and pallet requirements.
OEM / ODM Support
The X20 can be adapted to different markets and project requirements.
Available customization options may include:
Product Color
Logo Branding
Packaging
Accessory Configuration
110 V / 220 V Voltage Configuration
Customized Drainage Accessories
OEM / ODM Cooperation
For orders below 500 units, customized logo service may involve an additional charge.
Production & Service Support
Production Lead Time: 7–15 Days
Brushless Series Warranty: 2 Years
Extended Warranty: +50 RMB / unit / year
Product Training: Available
Drop Shipping: Available with additional service charge
OEM / ODM Support: Available
