S55
- Compact 1/2 HP DC Grinding Platform
- Designed for space-conscious residential kitchens and OEM programs, combining a 375 W DC permanent-magnet motor, 3,300 rpm operation and CF three-layer grinding in a compact 1,100 mL platform.
- DC Permanent-Magnet Motor 375 W rated power and 3,300 rpm operation provide reliable performance for everyday food-waste processing.
- CF Three-Layer Grinding System A 1,100 mL chamber and dual-layer grinding disc provide practical capacity and a reinforced grinding structure.
- Air Switch & Safety Protection The air switch provides simple and convenient operation, while overload and overtemperature protection support safer use under abnormal conditions.

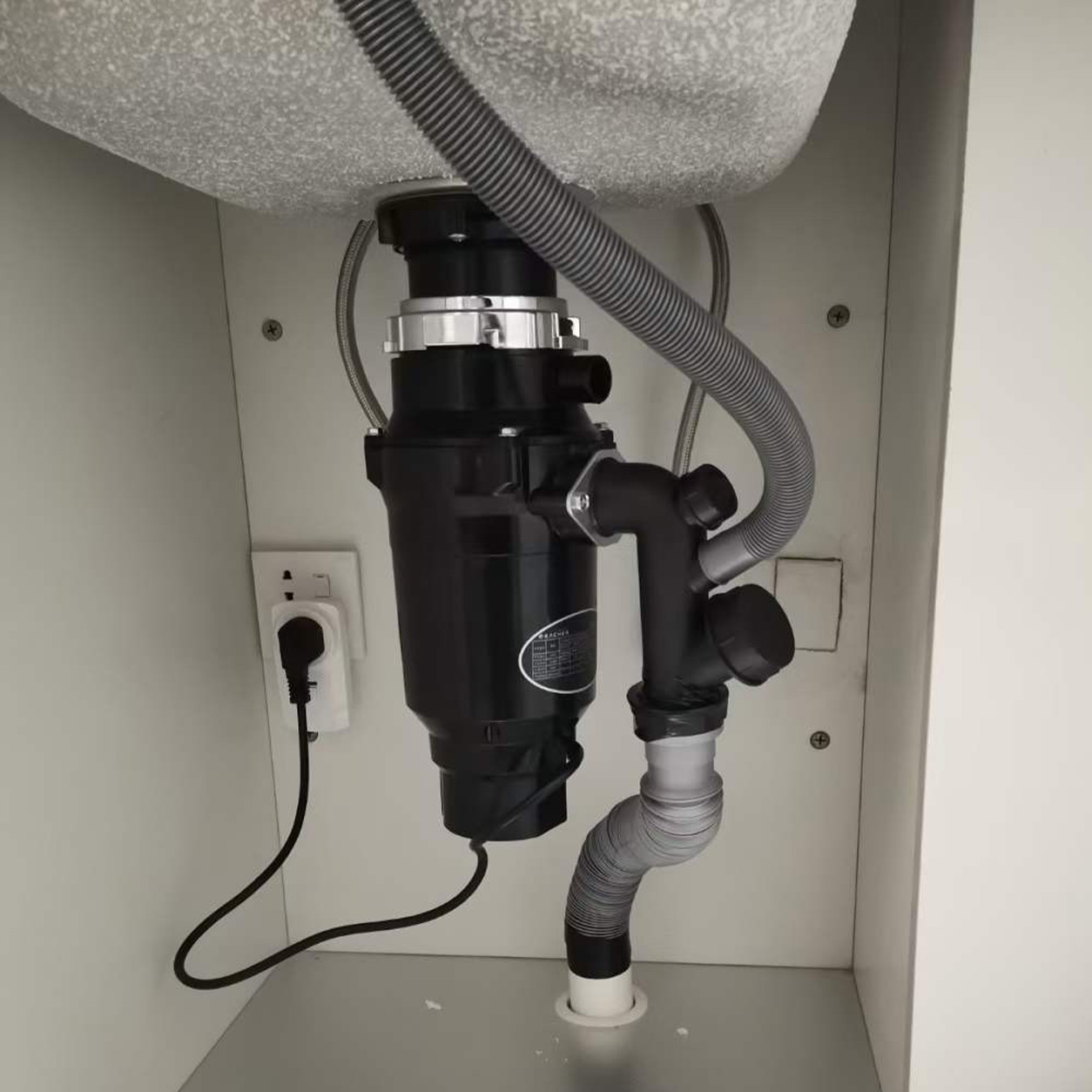

- Compact Quick-Lock Installation The 365 × 135 mm body and 4.4 kg net weight support flexible under-sink installation, while the aluminum and ABS mounting assembly simplifies installation and servicing.

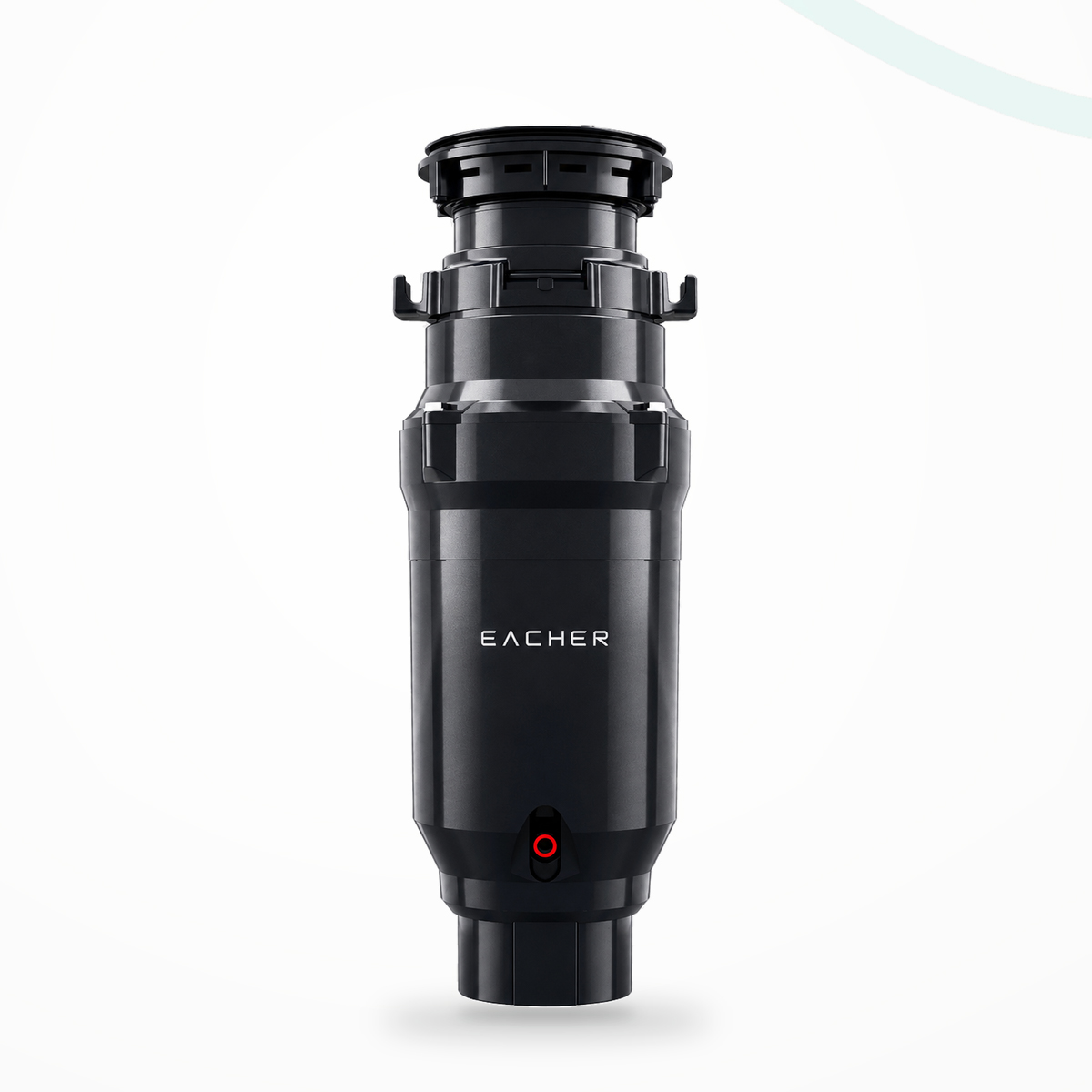

S55 Slim Food Waste Disposer
Compact Design with Reliable Everyday Performance
The EACHER S55 is a slim and practical food waste disposer designed for compact residential kitchens and space-limited under-sink cabinets.
With a body width of only 135 mm, the S55 combines a 375W DC permanent-magnet motor, CF Three-Layer Grinding System and Double-Layer Grinding Disc to provide reliable performance for everyday food waste disposal while preserving valuable cabinet storage space.
Air-switch operation, quick-lock installation and built-in overload and overheat protection make the S55 a practical choice for small households, residential projects, distributors and customized OEM/ODM applications.

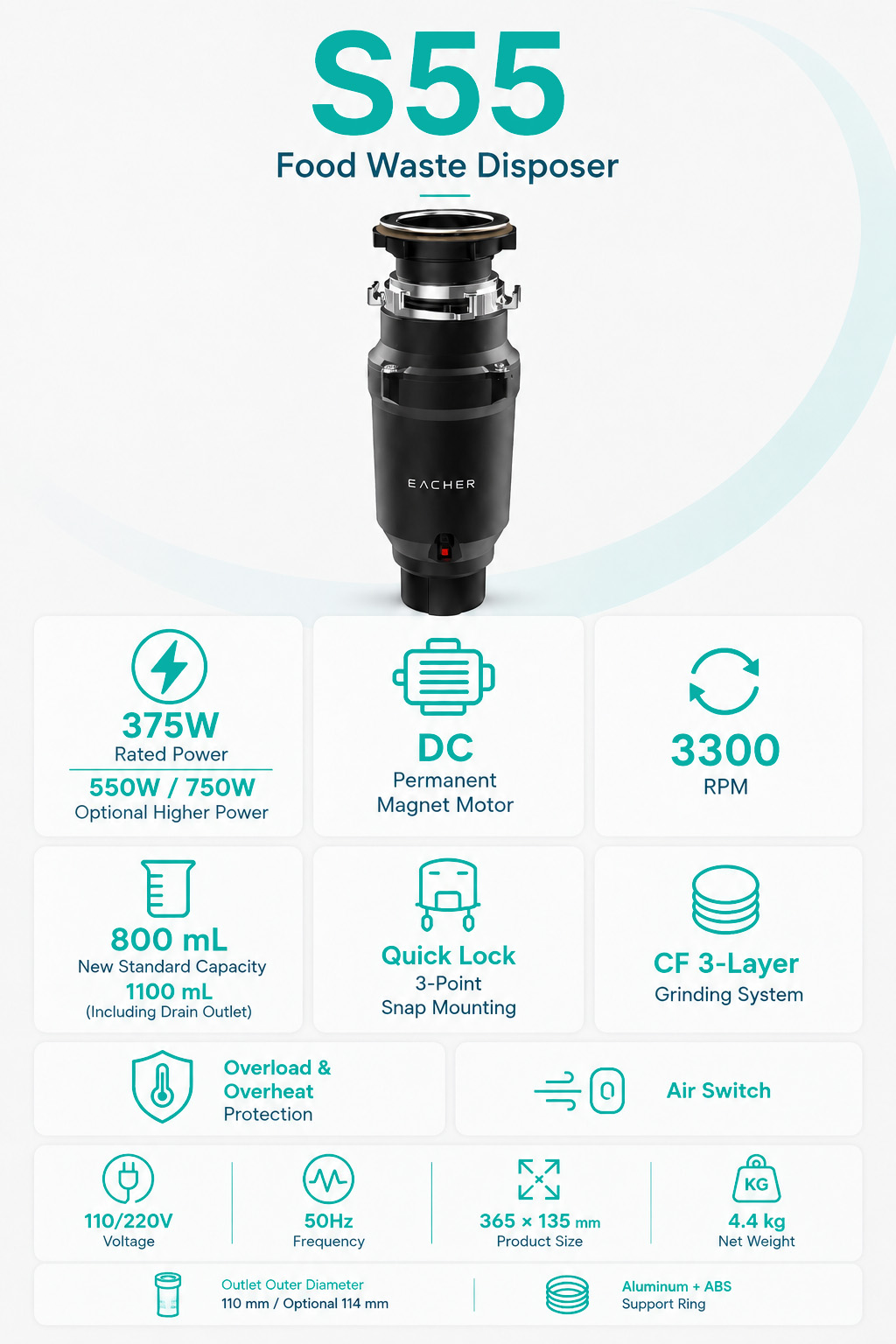

Technical Specifications
| Specification | S55-1/2HP |
|---|---|
| Product Positioning | Basic Practical Model |
| Recommended Household Size | 1–2 People |
| Product Color | Black |
| Rated Power | 375 W |
| Optional Power Configuration | 550 W / 750 W |
| Motor Type | DC Permanent-Magnet Motor |
| Rated Voltage | 110 V / 220 V |
| Rated Frequency | 50 Hz |
| Motor Speed | 3,300 rpm |
| New Standard Tested Capacity | 800 ml |
| Capacity Including Sink Outlet | 1,100 ml |
| Standard No-Load Noise | 66.3 dB |
| Grinding System | CF Three-Layer Grinding System |
| Grinding Disc | Double-Layer Grinding Disc |
| Control Method | Air Switch |
| Installation System | Quick-Lock Mounting |
| Mounting Support | Aluminum + ABS |
| Automatic Reverse | No |
| Automatic Water Inlet | No |
| Intelligent Boosted Drainage | No |
| Digital Display | No |
| Safety Protection | Overload and Overheat Protection |
| Housing Material | ABS |
| Product Dimensions | 365 × 135 mm |
| Mounting Interface Inner Diameter | 90 mm |
| Mounting Interface Outer Diameter | 110 mm |
| Optional Outer Diameter | 114 mm |
| Net Weight | Approx. 4.4 kg |
| Gross Weight | Approx. 5.4 kg |
Safety and Reliability
The S55 combines a DC permanent-magnet motor with overload and overheat protection for dependable everyday operation.
Its CF Three-Layer Grinding System, Double-Layer Grinding Disc and Aluminum + ABS Quick-Lock Mounting System provide a practical combination of reliable grinding performance and convenient installation.
Standards and Certification
Applicable Standards
GB/T 4706.49-2024
GB/T 22802-2024
Certification / Test Reports
FCC
CQC
RoHS
CE
UL Test Report
Certification and test-report availability may vary according to product configuration and destination market.
Standard Accessories
The S55 comes with a standard accessory package for installation and everyday use.
Air Switch × 1
Single-Threaded Connection Pipe × 1
Multifunctional Sink Stopper × 1
Three-Way Elbow Pipe × 1
Splash Guard × 1
Accessory Box × 1
Instruction Manual × 1
Product Certificate × 1
Packaging Carton × 1
60 mm adapter is not included as standard.
Water inlet hose is not included as standard.
Packaging Information
| Item | Details |
|---|---|
| Package Dimensions | 245 × 185 × 420 mm |
| Net Weight | Approx. 4.4 kg |
| Gross Weight | Approx. 5.4 kg |
| Estimated Production Lead Time | 7–15 Days |
Container Loading
| Container | Theoretical Loading Quantity |
|---|---|
| 20GP / 28 m³ | Approx. 1,470 units |
| 20HQ / 31.5 m³ | Approx. 1,654 units |
| 40GP / 50 m³ | Approx. 2,626 units |
| 40HQ / 65 m³ | Approx. 3,414 units |
The quantities above are theoretical maximum values calculated according to package volume. Actual loading quantities may vary depending on packing arrangement, container structure, loading clearance and pallet requirements.
OEM / ODM Support
The S55 can be adapted to different markets and project requirements.
Available customization options may include:
550W / 750W Power Configuration
Logo Branding
Packaging
Accessory Configuration
110 V / 220 V Voltage Configuration
Optional 114 mm Mounting Interface
Customized Drainage Accessories
OEM / ODM Cooperation
Power configuration, voltage, packaging and accessory configuration can be customized according to different market and OEM/ODM requirements. Final configuration is subject to confirmation between both parties.
