200A
- Reliable 3/4 HP DC Grinding Platform
- Designed for residential kitchen and OEM programs, combining a 550 W DC permanent-magnet motor, 3,500 rpm operation and a CF three-layer grinding system in a practical 1,200 mL platform.
- DC Permanent-Magnet Motor 550 W rated power and 3,500 rpm operation provide reliable performance for everyday food-waste processing.
- CF Three-Layer Grinding System A 1,200 mL chamber and dual-layer grinding disc provide practical capacity and a reinforced grinding structure.
- Remote Control & Motor Protection A remote control switch supports convenient operation, while overload and overtemperature protection provide added safety under abnormal conditions.
- 3-Point Quick-Lock Mounting A metal support ring provides a stable under-sink connection and supports straightforward installation and servicing.

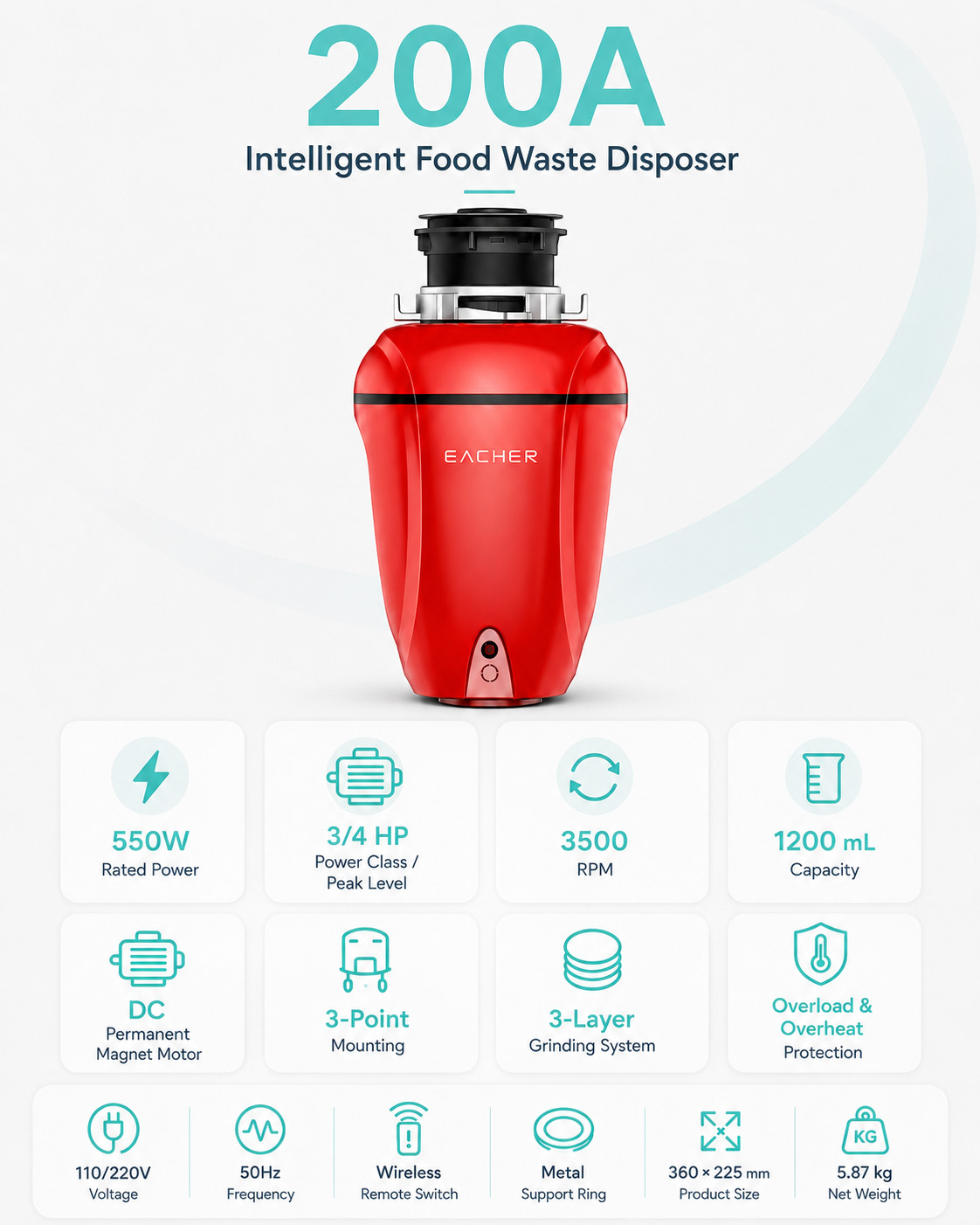

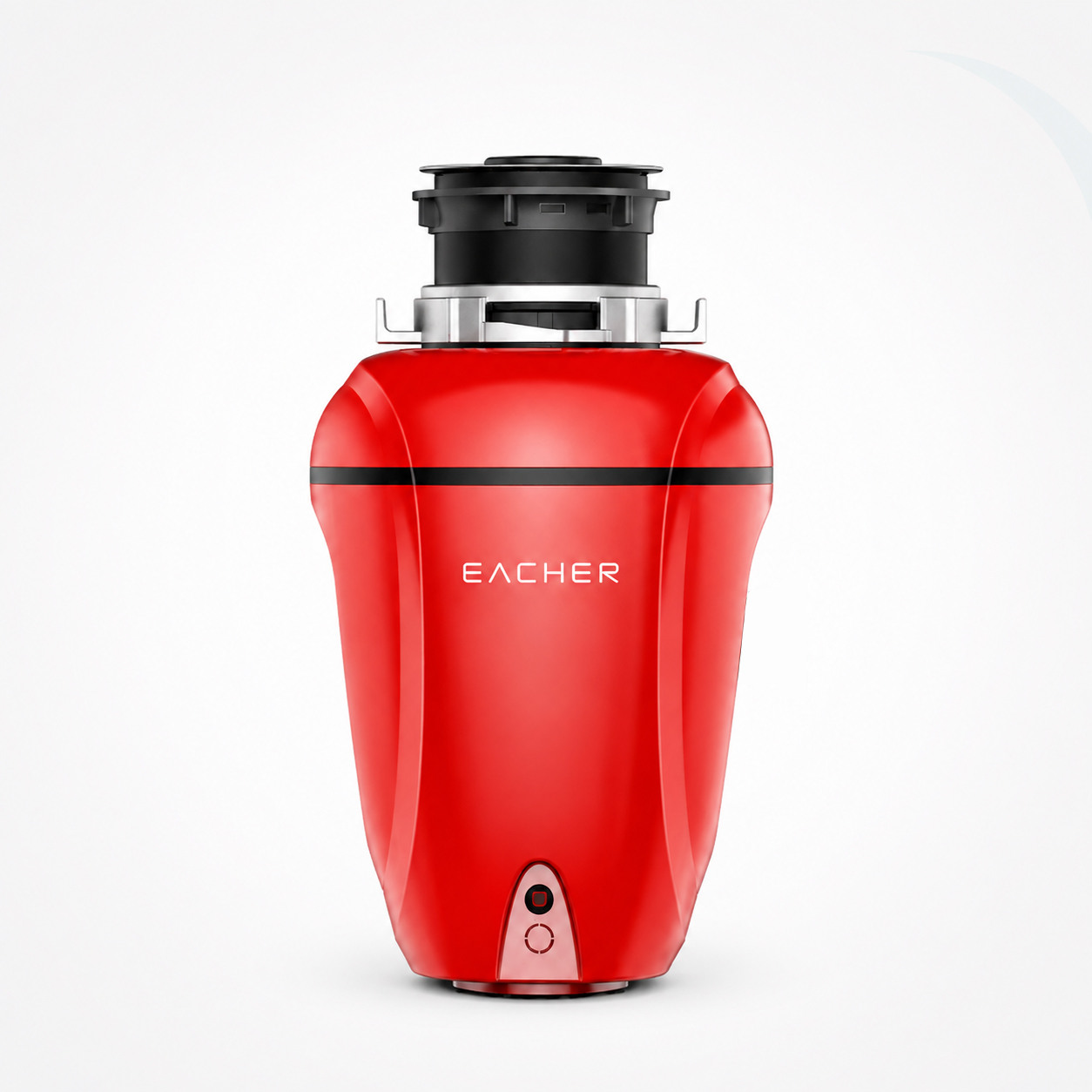

200A Food Waste Disposer
High-Speed Grinding with Convenient Remote Control
The EACHER 200A is a reliable food waste disposer designed for everyday residential kitchens.
Powered by a 550W DC permanent-magnet motor running at 3,500 rpm, the 200A combines a CF Three-Stage Grinding System, Double-Layer Grinding Disc and Remote-Control Operation to provide efficient and convenient food waste processing.
Its metal-supported three-point mounting system, built-in overload and overheat protection and customizable configuration make the 200A a practical choice for residential kitchens, distribution projects and OEM/ODM applications.
Technical Specifications
| Specification | 200A-3/4HP |
|---|---|
| Product Positioning | Remote-Control Enhanced Model |
| Recommended Household Size | 2–4 People |
| Product Color | Black / Customizable |
| Rated Power | 550 W |
| Configurable Power | 750 W |
| Motor Type | DC Permanent-Magnet Motor |
| Rated Voltage | 110 V / 220 V |
| Rated Frequency | 50 Hz |
| Motor Speed | 3,500 rpm |
| New Standard Tested Capacity | 1,000 ml |
| Capacity Including Sink Outlet | 1,350 ml |
| Standard No-Load Noise | 69.6 dB |
| Grinding System | CF Three-Stage Grinding System |
| Grinding Disc | Double-Layer Grinding Disc |
| Control Method | Remote-Control Switch |
| Installation System | Three-Point Mounting |
| Mounting Support | Metal |
| Automatic Reverse | No |
| Automatic Water Inlet | No |
| Intelligent Boosted Drainage | No |
| Digital Display | No |
| Safety Protection | Overload and Overheat Protection |
| Housing Material | ABS |
| Product Dimensions | 360 × 225 mm |
| Mounting Interface Inner Diameter | 90 mm |
| Mounting Interface Outer Diameter | 110 mm |
| Optional Outer Diameter | 114 mm |
| Net Weight | Approx. 5.87 kg |
| Gross Weight | Approx. 6.8 kg |
Safety and Reliability
The 200A combines a DC permanent-magnet motor with overload and overheat protection for dependable everyday operation.
Its Double-Layer Grinding Disc, CF Three-Stage Grinding System and metal-supported three-point mounting structure provide a stable and practical platform for residential kitchen use.
Standards and Certification
Applicable Standards
GB/T 4706.49-2024
GB/T 22802-2024
Certification
RoHS
CQC
Standard Accessories
The 200A comes with a standard accessory package for installation and everyday use.
Remote-Control Switch × 1
Threaded Connection Pipe × 1
Multifunctional Sink Stopper × 1
Three-Way Elbow Pipe × 1
Splash Guard × 1
Accessory Box × 1
Instruction Manual × 1
Product Certificate × 1
Packaging Carton × 1
60 mm adapter is not included as standard.
Water inlet hose is not included as standard.
Packaging and Delivery
| Item | Details |
|---|---|
| Package Dimensions | 295 × 225 × 455 mm |
| Net Weight | Approx. 5.87 kg |
| Gross Weight | Approx. 6.8 kg |
| Estimated Production Lead Time | 7–15 Days |
Container Loading
| Container | Theoretical Loading Quantity |
|---|---|
| 20GP / 28 m³ | 927 units |
| 40GP / 50 m³ | 1,043 units |
| 20HQ / 31.5 m³ | 1,655 units |
| 40HQ / 65 m³ | 2,152 units |
The quantities above are theoretical maximum loading values. Actual loading quantities may vary depending on packing arrangement, loading clearance, container structure and pallet requirements.
OEM / ODM Support
The 200A can be adapted to different markets and project requirements.
Available customization options may include:
Product Color
750W Power Configuration
Logo Branding
Packaging
Accessory Configuration
110 V / 220 V Voltage Configuration
Optional 114 mm Mounting Interface
Customized Drainage Accessories
OEM / ODM Cooperation
Product color, power configuration, voltage, packaging and accessory configuration can be customized according to different market and OEM/ODM requirements. Final product appearance and configuration are subject to confirmation between both parties.
